SIGCORE MINI 500

Portable Power Station

SKU: SC-MINI-500

SIGCORE MINI 500
SIGCORE MINI 500SIGCORE MINI 500SIGCORE MINI 500

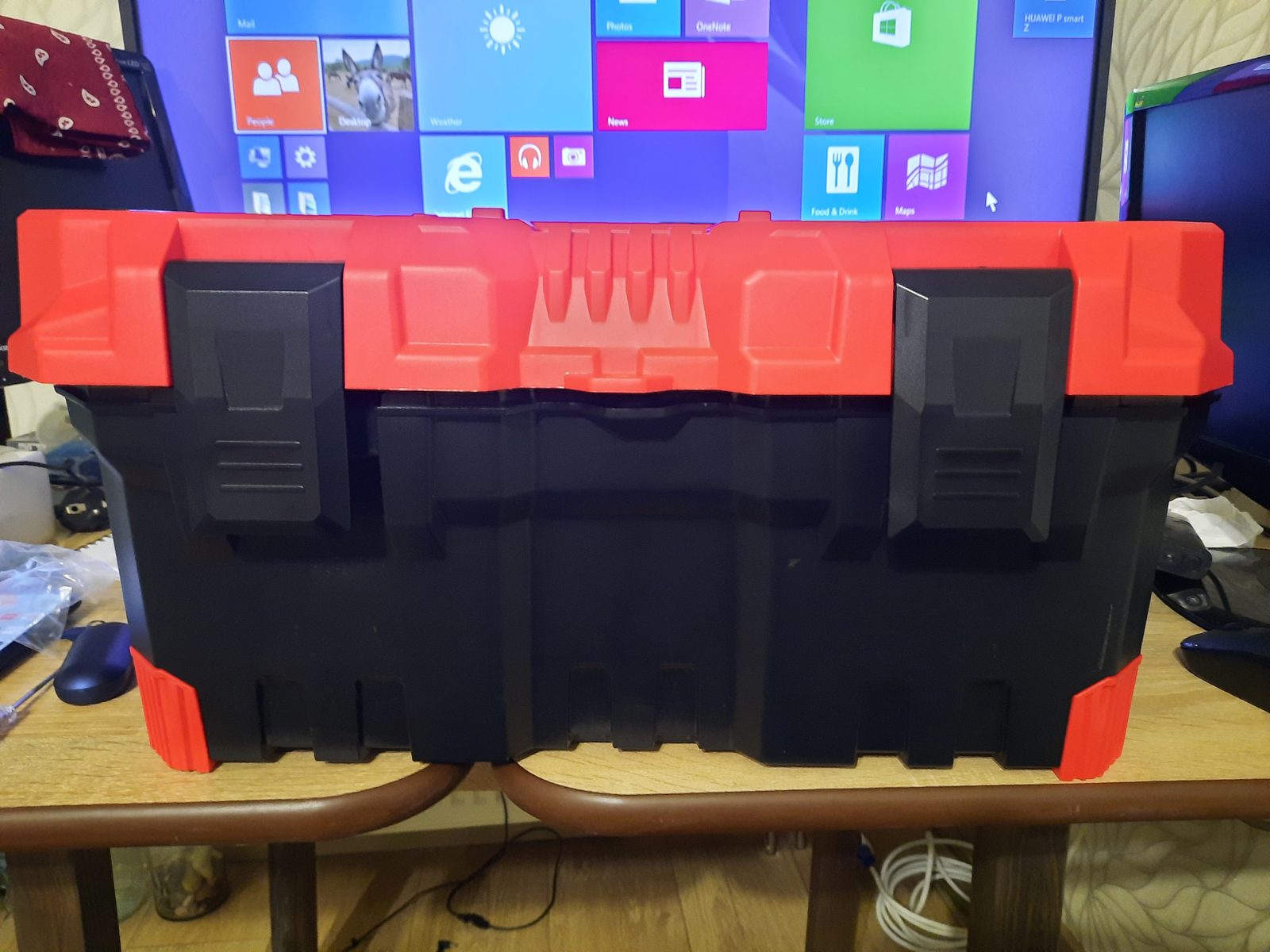

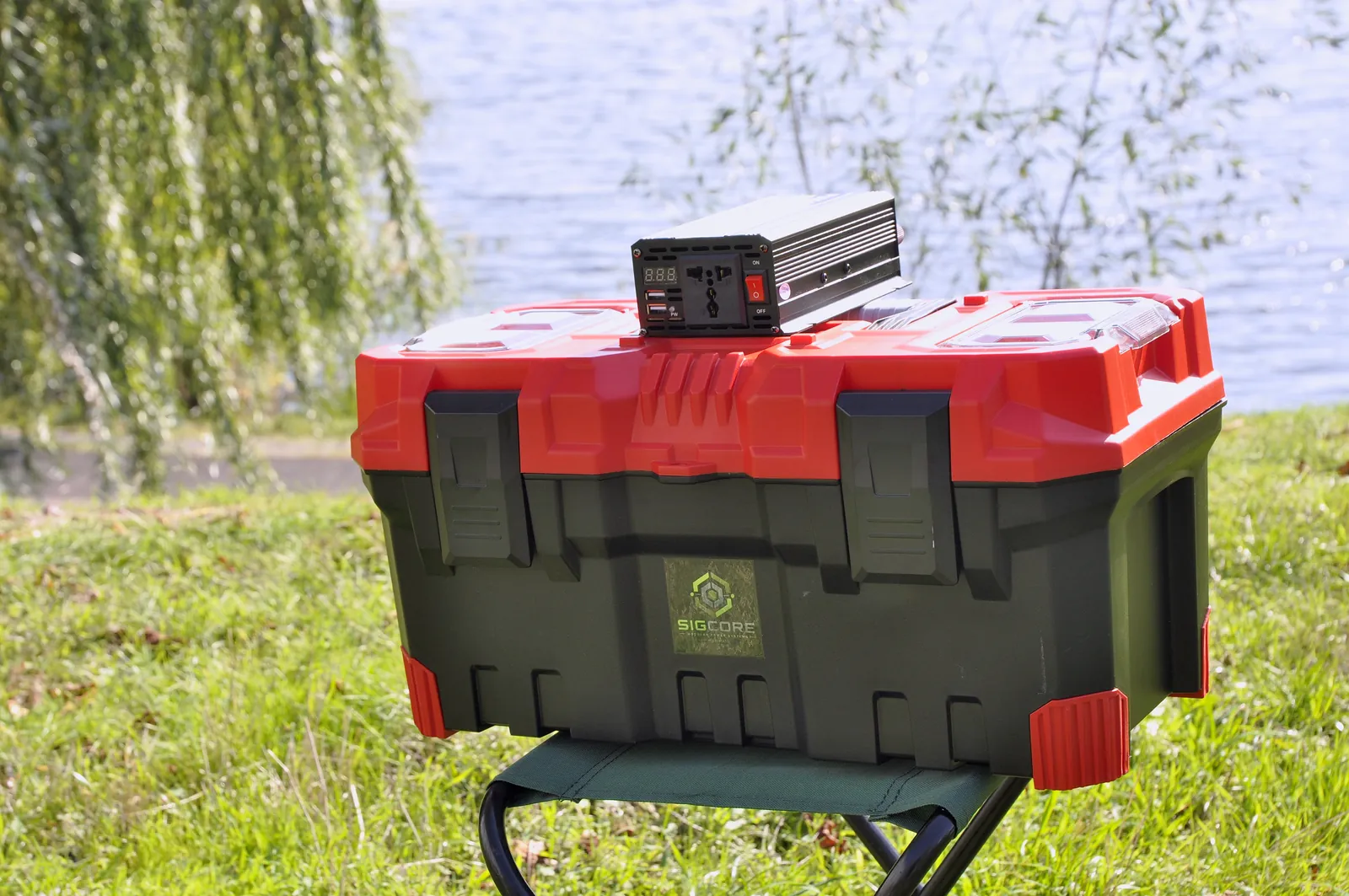

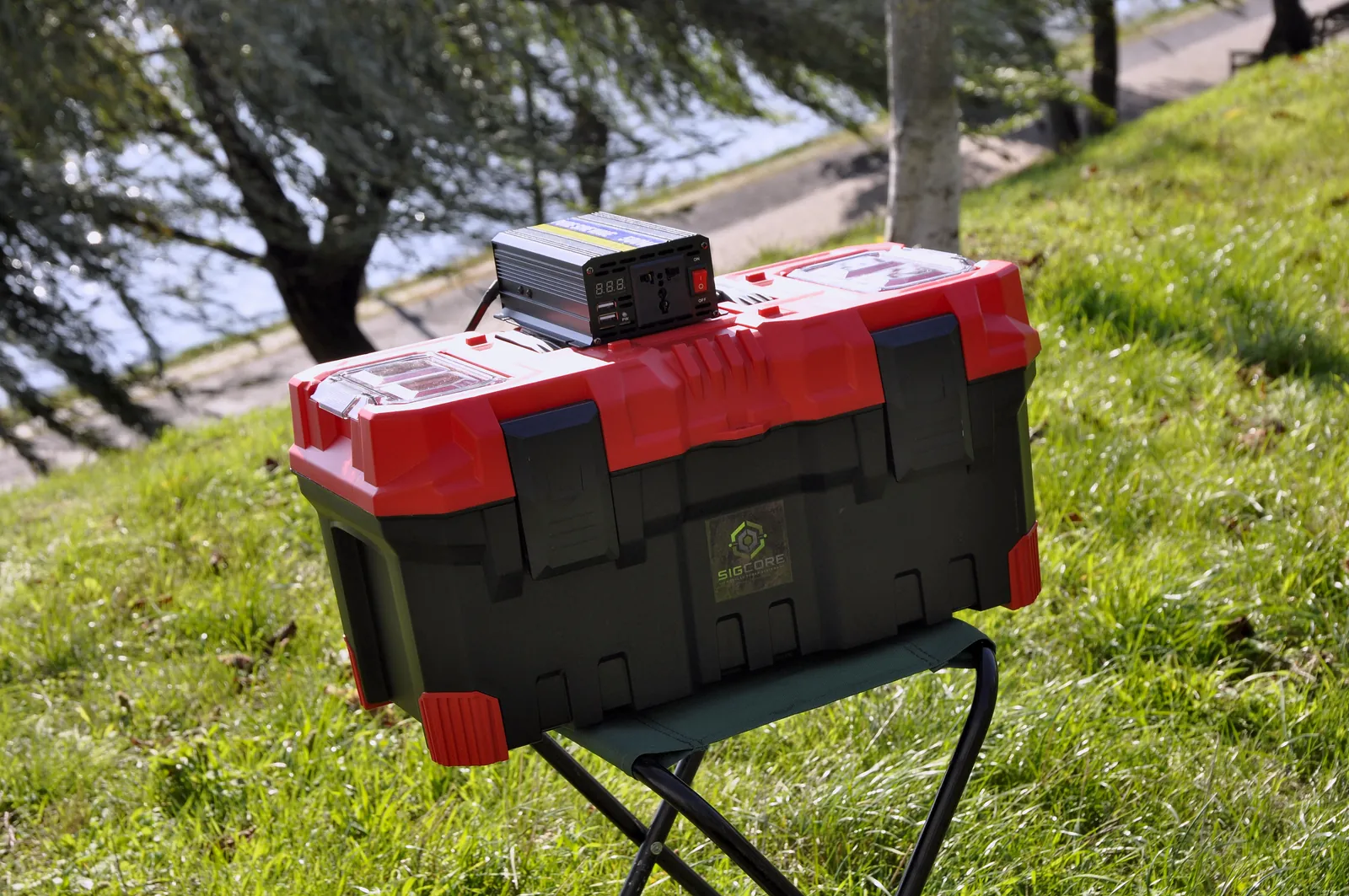

Real photos of the physical prototype

Compact 640 Wh LiFePO₄ portable power station with a 500 W pure sine wave inverter and a 10 A charger, in a rugged tactical case. Designed for electronics, communications and mobile applications. Currently in development and assembly.

  • StatusIn development and assembly
  • ChemistryLiFePO₄
  • Nominal voltage12.8 V
  • Capacity50 Ah
  • Nominal energy640 Wh
  • Inverter500 W, 220 V, pure sine wave
  • Protection100 A fuse
  • ControlsPower switch and output panel
  • Battery indicatorShunt-based (planned)
  • EnclosureRugged tactical case (in progress)
  • Charger10 A
  • Weight (approx.)~12 kg
  • DimensionsTo be confirmed

Price: on request

Order requestMessage us on Instagram

Runtime calculator

DeviceWattsQty

Total load: 0 W

Parameters: 640 Wh · reserve 10% · inverter efficiency 88% · inverter self-consumption 10 W (estimated, pending measurement)

Results are estimates and depend on actual consumption, temperature, inverter efficiency and battery condition.
